Magento

Platform: Magento
Supported Versions: 2.3.4v to 2.4.5v

Integrating with the Plural Magento Plugin enables seamless payment processing through credit cards, debit cards, and EMI options via the PinePG Edge platform. Below is a simple, step-by-step guide to help you install and configure the PinePG Edge Plugin on your Magento site for smooth transactions.

Integration Steps

1. Download the Extension

1. Navigate here to download the extension file.
2. Click on Code, then select Download ZIP to download the extension file.

2. Move Files to Magento Directory

1. Unzip the downloaded file.
2. Move the unzipped folder to the app/code directory in your Magento installation, where custom code and extensions are stored.

Note: If the code folder does not exist within <root>/app, create it.

3. Run Terminal Commands

• Open a terminal and navigate to your Magento root directory (where the bin directory and command-line tools are located).
• Run the following commands to enable the extension:

php bin/magento module:enable Pinelabs_PinePGGateway
php bin/magento setup:upgrade
php bin/magento setup:static-content:deploy
php bin/magento cache:clean

• These commands activate the extension and make it available in Magento.

4. Configure the Extension:

1. Log in to your Magento backend.
2. Go to Stores and Configuration.
3. Under Sales choose Payment Methods, you’ll find a list of available payment methods.
4. Locate and select the payment method provided by the extension.

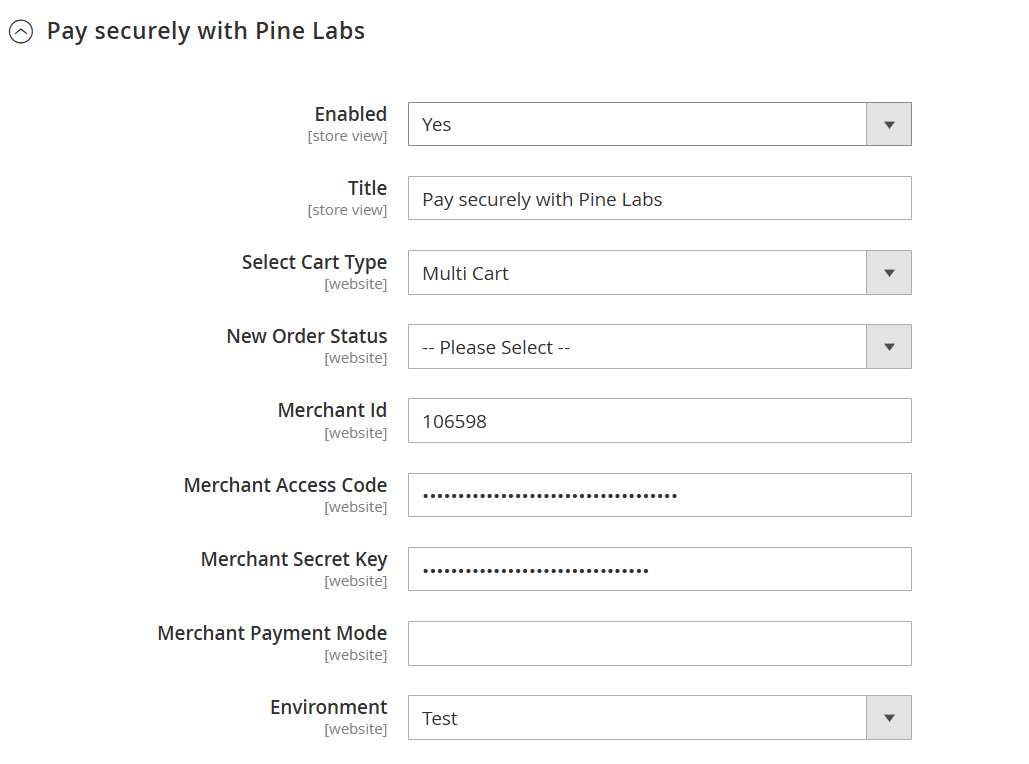

5. Fill in the below following details:
   1. Enable: Select 'Yes' to enable the module.
   2. Title: Enter a name to display on the checkout page.
   3. Select Cart Type: Choose between Single and Multi-Cart options based on your credentials.
   4. Merchant Id: Enter the ID for the chosen Payment Environment (Test or Live).
   5. Merchant Access Code: Add the Access Code for the selected Payment Environment.
   6. Merchant Secret: Enter the Secret for the selected Payment Environment.
   7. Merchant Payment Mode: Specify the payment mode activated for your account.
   8. Environment: Choose 'Test' for testing or 'Live' for actual payments.

6. After configuration, check the extension on your checkout page.

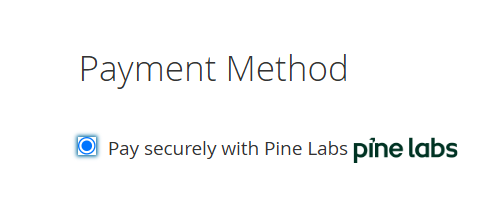

7. Click Place Order to see the payment gateway options.
8. Upon successful payment, you’ll be redirected to a success page; otherwise, a failure page will appear.

📘

Note:

• Pine plugins do not handle shipping or additional charges (example: TDR, GST).
• Ensure that your cart value matches the product value, as any extra charges must be managed manually at the merchant end.
